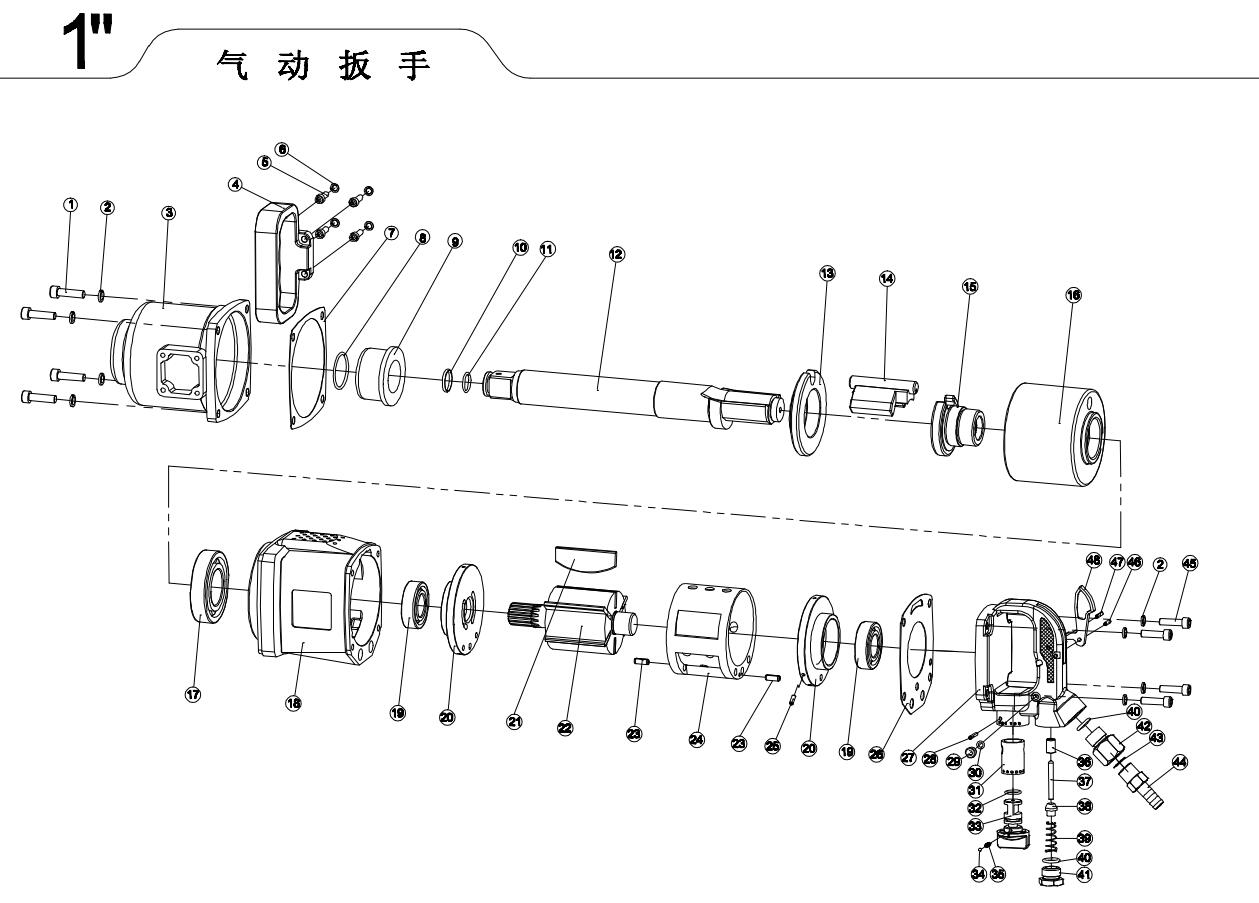

AMW-1-3200捷科1寸气动扳手

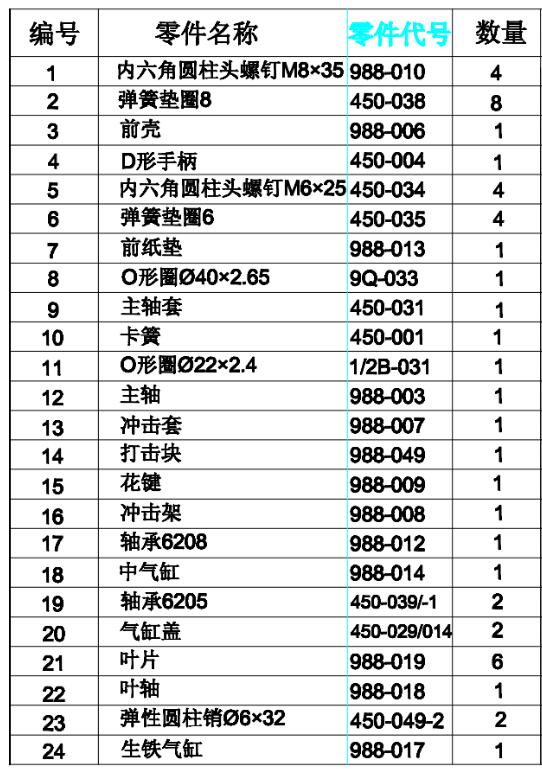

| Part No. | Description | 品名 | 捷科型号 | 单个零件价格 | 数量 |
| 1 | Hex Screw | 4 | |||
| 2 | Gasket | 8 | |||
| 3 | Hammer Case | 1 | |||
| 4 | D- Handle | 1 | |||
| 5 | Screw | 4 | |||
| 6 | Gasket | 4 | |||
| 7 | Gasket | 前纸垫 | AMW-1-3200-07 | ￥2.90 | 1 |
| 8 | O ring | 1 | |||
| 9 | Anvil Bushing | 1 | |||
| 10 | Circlip | 卡簧 | AMW-1-3200-10 | ￥2.90 | 1 |
| 11 | O ring | O形圈φ子22x2.4 | AMW-1-3200-11 | ￥2.90 | 1 |
| 12 | Anvil | 主轴 | AMW-1-3200-12 | ￥239.00 | 1 |
| 13 | Hammer Bushing | 1 | |||
| 14 | Hammer | 打击块 | AMW-1-3200-14 | ￥99.00 | 1 |
| 15 | Cam | 花键 | AMW-1-3200-15 | ￥79.00 | 1 |
| 16 | Hammer Cage | 冲击架 | AMW-1-3200-16 | ￥228.00 | 1 |
| 17 | Bearing | 1 | |||
| 18 | Housing | 1 | |||
| 19 | Bearing | 2 | |||
| 20 | Rear End Plate | 2 | |||
| 21 | Vane | 叶片 | AMW-1-3200-21 | ￥8.60 | 6 |
| 22 | Rotor | 1 | |||
| 23 | Pin | 2 | |||
| 24 | Cylinder | 1 |

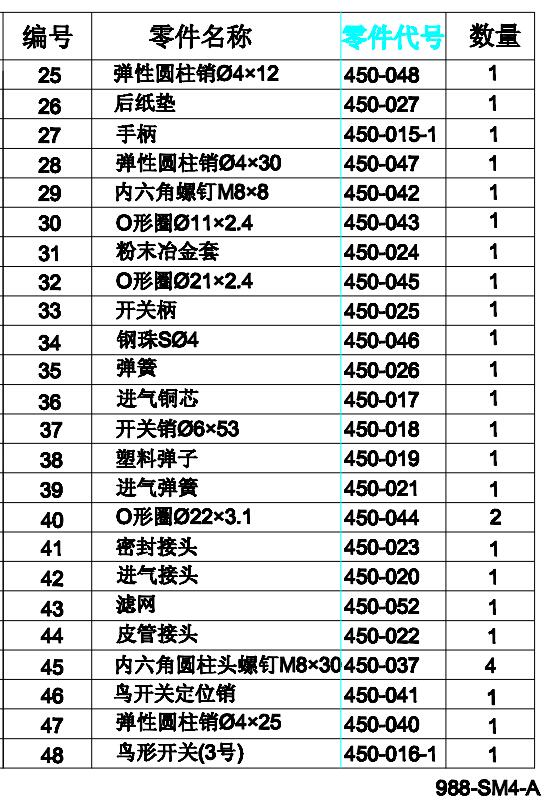

| Part No. | Description | 品名 | 捷科型号 | 单个零件价格 | 数量 |
| 25 | Pin | 1 | |||
| 26 | Gasket | 后纸垫 | AMW-1-3200-26 | ￥2.90 | 1 |
| 27 | Handle | 1 | |||
| 28 | Pin | 1 | |||
| 29 | Hex Screw | 2 | |||
| 30 | O ring | 2 | |||
| 31 | Valve Bushing | 1 | |||
| 32 | O ring | 1 | |||
| 33 | Direction pole | 1 | |||
| 34 | Steel Ball | 1 | |||
| 35 | Spring | 1 | |||
| 36 | Throttle Bushing | 1 | |||
| 37 | Throttle Valve Pin | 1 | |||
| 38 | Throttle Valve | 1 | |||
| 39 | Inlet Spring | 1 | |||
| 40 | O ring | 1 | |||
| 41 | Air Inlet | 1 | |||
| 42 | Air Inlet Screen | 1 | |||
| 43 | Hose Connector | 1 | |||
| 44 | Hex Screw | 4 | |||
| 45 | Spring Pin | 1 | |||
| 46 | Trigger Pin | 1 | |||
| 47 | Trigger - Inside | 1 | |||
